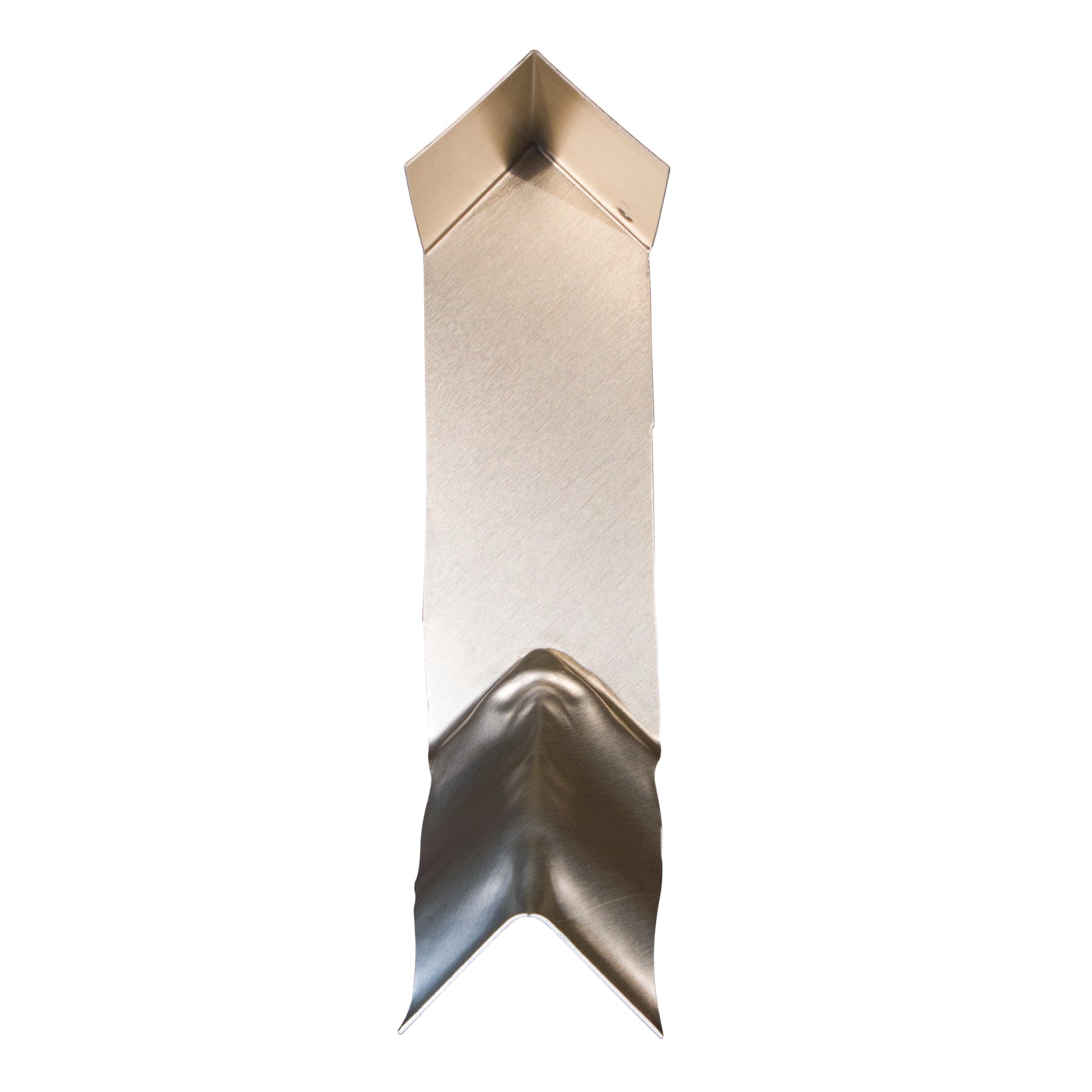

6-Inch K-Style Inside Strip Miter (90°)

6-Inch K-Style Inside Strip Miter (90°)

Color: White, 80 Degree
Unit of measure: pcs
icon of a box with stamp
Expected ship / pick-up date:
06 Oct | Typically ready in 1-2 days
We're ready to help. Call us at (610) 779-6934 and we'll happy to answer your questions.

Solve inside corner challenges for large Gutter Systems with our 6-Inch 90° Inside Strip Miter for K-Style Gutters. This flat aluminum strip covers mitered Gutter joints to deliver a cost-effective sealing solution for inside corner applications on high-capacity, budget-conscious projects. Constructed from .019" aluminum and offered in 30° White, 80° White, and Brown finishes, these Strip Miters provide an affordable alternative to box miters when properly installed and sealed by experienced contractors on large Gutter installations.

6-Inch K-Style Inside Strip Miter (90°) Key Features

  • Cost-effective large system corners

    Economical flat aluminum strip delivers budget-friendly sealing for 6-Inch inside corner joints compared to pre-formed Box Miter alternatives

  • High-capacity system compatibility

    Engineered specifically for 6-Inch K-Style Gutters handling up to 2,400 sq ft roof areas with proper profile matching for secure overlap coverage

  • Durable aluminum construction

    Quality .019" aluminum gauge resists corrosion and thermal expansion while remaining workable for field installation on large systems

  • Flexible color options

    Available in 30° White (paint-ready), 80° White, and Brown finishes for repair work and budget-conscious large installations

6-Inch K-Style Inside Strip Miter (90°) Material & Specifications

Type: Inside Strip Miter, 90°
Gutter Compatibility: 6-Inch K-Style only
Material: Aluminum, baked-on enamel finish
Gauge / Thickness: .019"
Colors: 30° White (paint-ready), 80° White, Brown
Capacity: Designed for roof areas up to 2,400 sq ft per downspout
Application: Large system inside corners requiring economical joint coverage
Installation: Requires 45° Gutter cuts, proper sealing, and secure fastening
Use: Budget projects, repairs, matching existing Strip Miter systems on large Gutters

Installation & Maintenance Tips

This installation information is a general guide only and may not address your specific site conditions. Always follow local building codes, safety practices, and professional methods. If you are not experienced with this type of work, hire a qualified contractor.

Installation
  1. Cut Gutter angles: Cut both 6-Inch Gutter sections at 45° angles to form the inside corner joint; ensure clean, precise cuts for proper alignment on large system installation.
  2. Test fit assembly: Position Gutter sections to form 90° inside corner; verify proper alignment and adjust cuts if necessary before final installation of high-capacity system.
  3. Apply sealant generously: Place continuous bead of high-quality Gutter Sealant along both Gutter edges where Strip Miter will overlap on the large system inside corner.
  4. Position Strip Miter: Center strip over the inside joint ensuring equal overlap on both 6-Inch Gutter runs; press firmly into sealant bed for complete contact.
  5. Secure with fasteners: Install Pop Rivets or Screws every 2-3 inches along both edges of the Strip Miter for maximum holding power on inside corner application.
  6. Seal and finish: Tool excess sealant smooth and inspect for complete coverage; ensure watertight seal at all connection points to prevent water infiltration on high-capacity application.
Maintenance
  1. Inspect sealing integrity: Check Strip Miter seams seasonally for cracks, gaps, or sealant failure at the large system inside corner; reseal promptly to prevent water infiltration.
  2. Monitor fastener condition: Verify Rivets or Screws remain tight and corrosion-free on the high-capacity corner; replace loose or damaged fasteners with aluminum alternatives.
  3. Clear corner debris: Remove accumulated leaves and material at inside corners during routine cleaning to prevent water backup and joint stress in large systems.
  4. Check positioning: Ensure Strip Miter remains properly positioned and hasn't shifted due to thermal expansion or settling on large Gutter installation.

Compare Styles & Materials

6-Inch Inside K-Style Strip Miter vs Other Options

  • 5-Inch System: Handles up to 1,400 sq ft per Downspout, easier installation, lower cost, standard for typical applications.
  • 6-Inch System: Handles up to 2,400 sq ft per Downspout (40% more capacity), required for large roofs, higher cost, essential for commercial buildings.

When to Choose 6-Inch Inside Strip Miters

  • Large residential homes (over 1,400 sq ft per Downspout) requiring budget corner solutions
  • Commercial buildings needing economical high-capacity corner coverage
  • Repair work on existing 6-Inch Strip Miter systems
  • Budget-conscious projects where cost is the primary concern for large gutter installations

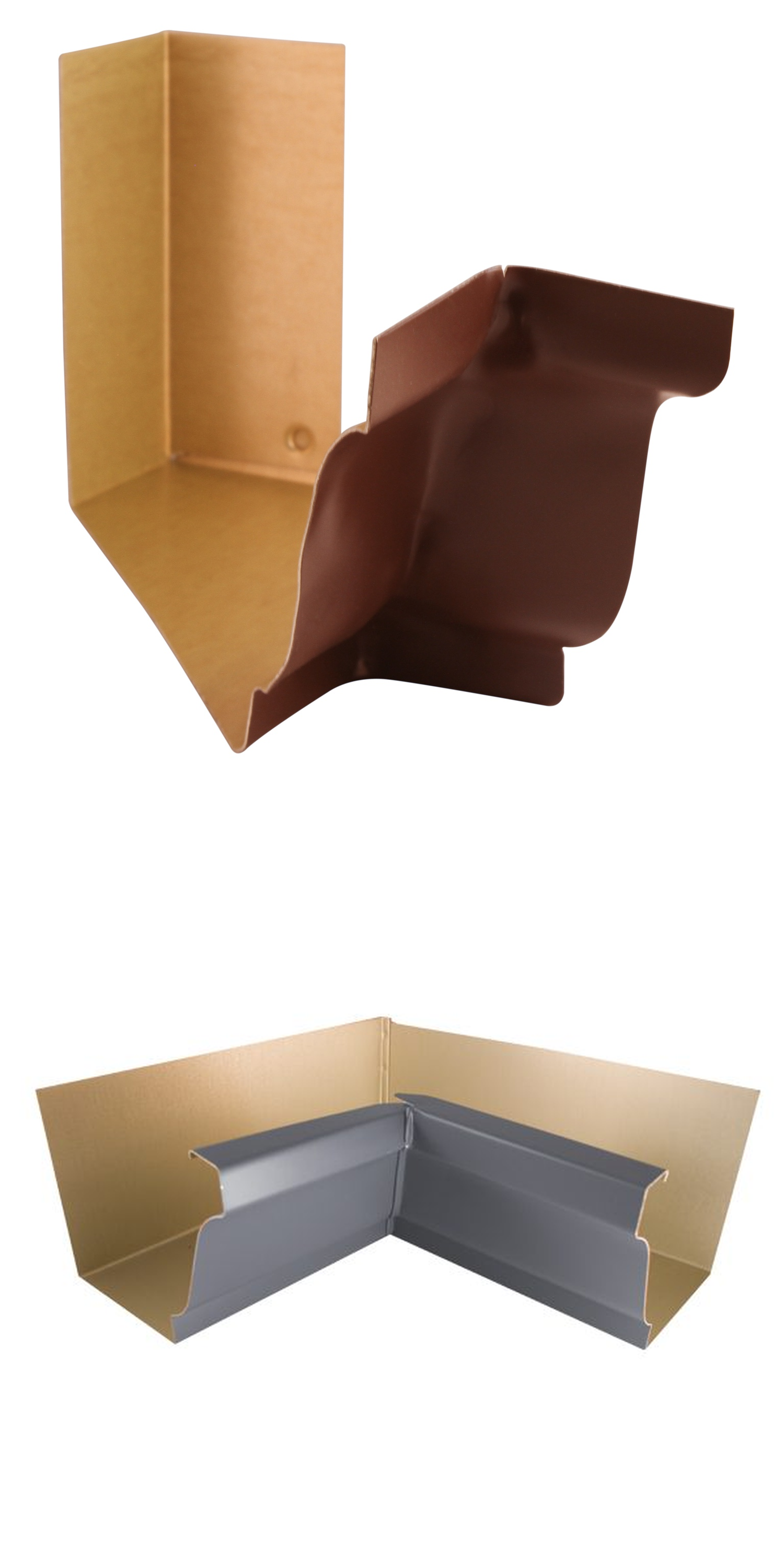

Strip Miter vs Box Miter for Large Systems

  • Strip Miter: Lower material cost, requires more labor and sealing work, adequate for budget applications on large systems, more visible seam lines.
  • Box Miter: Higher cost but cleaner appearance, faster installation, greater color selection, superior weather resistance, preferred for large system inside corners.

Best Choice: Use 6-Inch Inside Strip Miters for budget-conscious large Gutter projects, repair applications, or when matching existing Strip Miter systems where cost is the primary concern.

Frequently Asked Questions

This is a general guide only and may not address your specific site conditions. If you are not experienced with this type of work, hire a qualified contractor.

Will this work with 5-Inch Gutters?

No. This Strip Miter is sized specifically for 6-Inch K-Style Gutters only. Contact us for 5-Inch Inside Strip Miter options if needed.

What's the difference between 30° White and 80° White?

30° White has a flatter finish that accepts paint more easily, making it ideal for projects requiring custom color matching. 80° White has a slightly glossier finish that matches most standard Gutter systems.

Are inside Strip Miters easier to maintain than outside ones?

Inside Strip Miters are somewhat protected from direct weather exposure compared to outside corners, but they can accumulate debris more easily. Regular cleaning and inspection of seams remains important for large system performance.

How do inside corners differ from outside corners in installation?

Inside corners are typically less visible and somewhat protected from direct weather, but they can be more challenging to access for sealing and fastening. Proper sealant application is critical to prevent water backup.

What's the best sealant for large system Strip Miter applications?

Use our high-quality Gutter Sealant, designed for exterior aluminum applications. Apply generously and tool smooth for complete weather seal, as outside corners face direct precipitation and temperature cycling.
