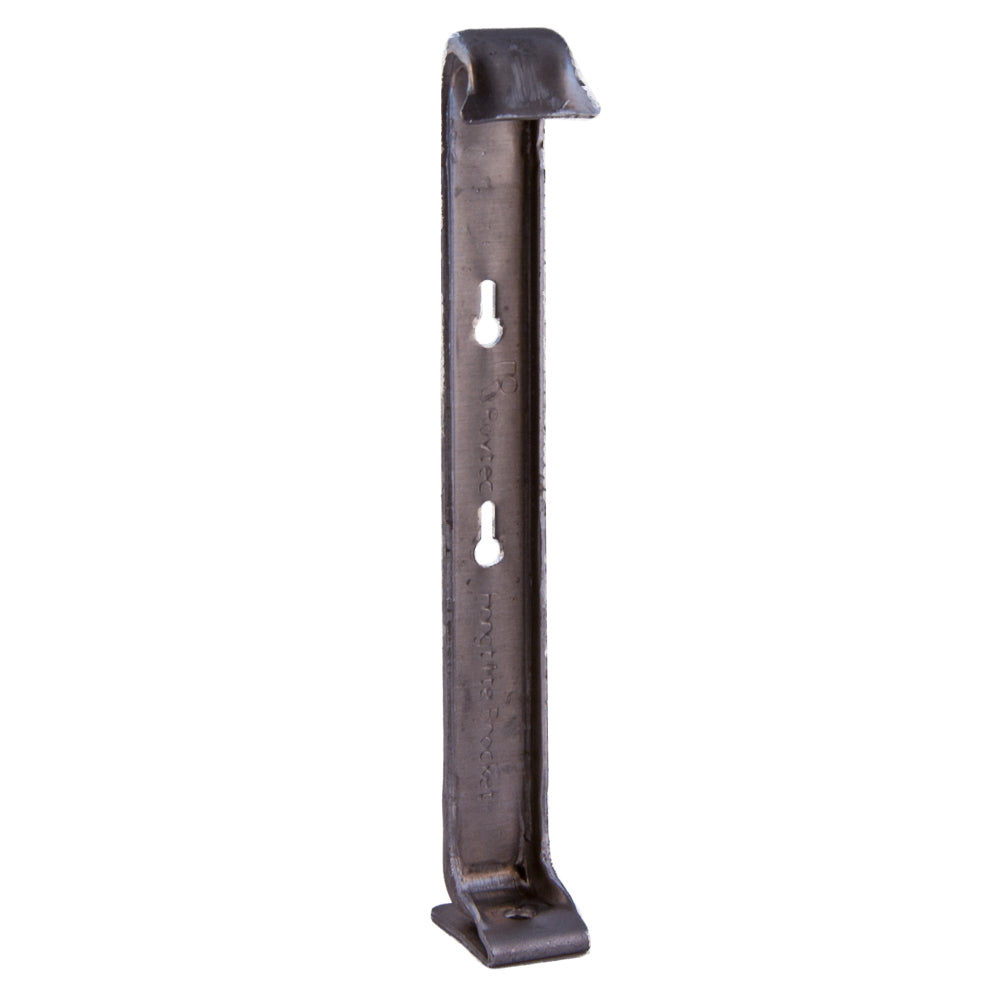

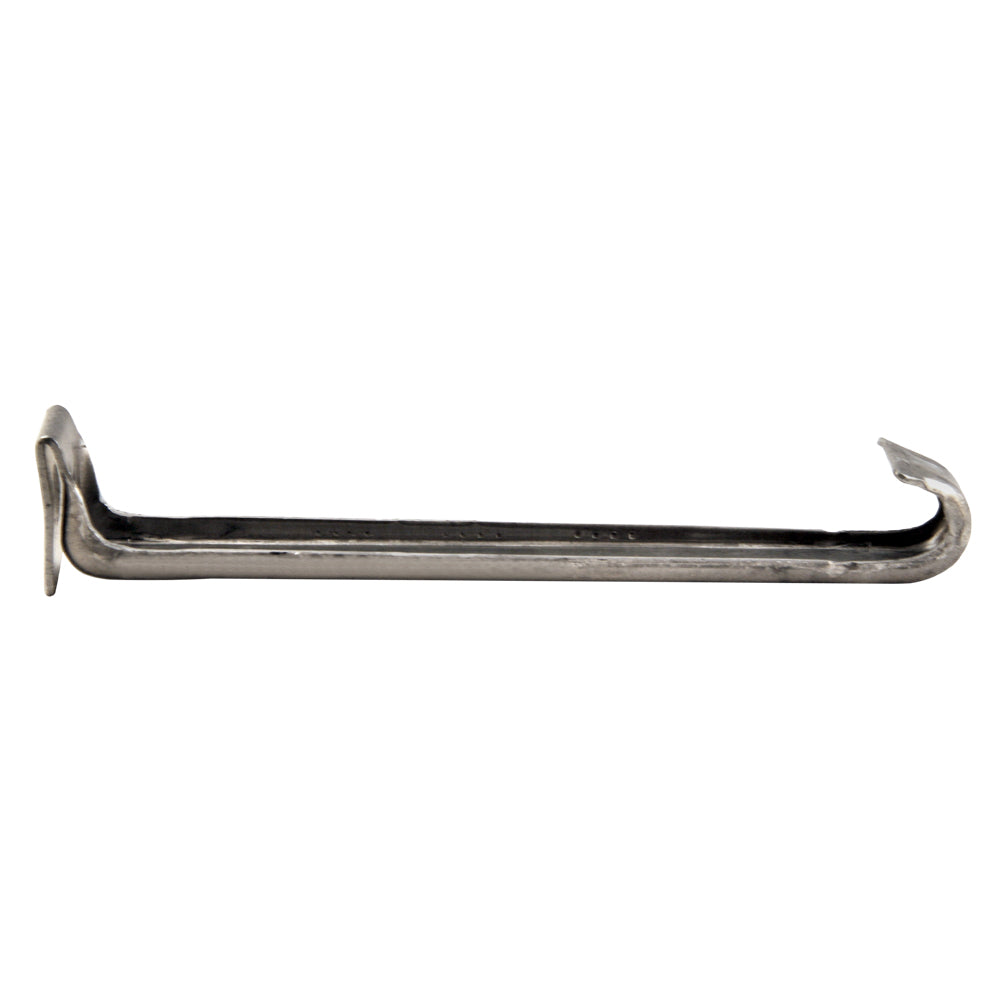

5-Inch Hidden Gutter Hanger with Rear Clip

5-Inch Hidden Gutter Hanger with Rear Clip

Color: Mill Finish
Unit of measure: pcs
icon of a box with stamp
Expected ship / pick-up date: (1)
04 Oct | Typically in stock
We're ready to help. Call us at (610) 779-6934 and we'll happy to answer your questions.

Boost gutter strength and keep a clean, hardware-free look. The Hangtite™ Hidden Gutter Hanger with Rear Clip snaps over the back hem and seats smoothly at the front bead for a firm, rattle-free hold. Made from heavy tempered aluminum and designed to fit behind most drip edge, Hangtite delivers fast installs, consistent pitch, and long-term stability in rain, snow, and wind. No-clip version is available by customer request.

5-Inch Hidden Gutter Hanger with Rear Clip Key Features

  • Rear-clip security

    Snap-over rear clip locks to the back hem for fast, reliable engagement

  • Front bead control

    Rounded front seats into the bead without marring and holds under load

  • Self-bracing design

    Channel-formed profile reinforces stress points to resist pull-out and sag

  • Fits behind Drip Edge

    Slim fold typically sits behind drip edge for a tidy, protected install

  • Heavy tempered aluminum

    Durable alloy resists deformation in heat, snow, and high-wind zones

  • Strap-ready option

    Keyholes accept add-on strap where fascia fastening is limited

  • Consistent pitch

    Positive engagement at front and back helps maintain straight, even slope

  • Proven holding power

    Rigorous pull tests indicate high resistance to pull-out

5-Inch Hidden Gutter Hanger with Rear Clip Material & Specifications

Type: Hidden Gutter Hanger for K-Style Gutters
Standard Variant: With Rear Clip (primary stocked model)
Size: 5 inch
Material: Heavy tempered aluminum
Design: Channel-formed, self-bracing; rounded front engages bead; rear clip snaps over back hem
Strapping: Keyholes provided for optional strap in challenging conditions
Compatibility: Designed to fit behind most drip edge; confirm clearance on-site
No-Clip Option: Available by customer request only
Use Case: New installs and replacements on residential or light commercial K-style systems
Notes: Follow local codes and manufacturer guidance for spacing and fasteners

Installation & Maintenance Tips

This installation information is a general guide only and may not address your specific site conditions. Always follow local building codes, safety practices, and professional methods. If you are not experienced with this type of work, hire a qualified contractor.

Installation
  1. Prep and plan: Set gutter pitch (about 1/4 in per 10 ft toward outlets). Confirm solid fastening substrate; repair or add blocking as needed.
  2. Layout spacing: Many installers space hangers about 24 in on center. Tighten to about 16 in near corners, miters, or in snow/ice or high-wind zones. Place a hanger within about 6 in of each outlet, miter, or end cap.
  3. Seat the front: Hook or roll the rounded front of the hanger into the gutter's front bead so the hanger sits flat and centered.
  4. Snap the rear clip: Rotate the hanger and snap the rear clip over the back hem. Verify full engagement along the hem.
  5. Fasten to Fascia: Drive exterior-grade corrosion-resistant screws through the hanger body into framing to a minimum embed of 3/4 in. Do not overdrive. Keep the gutter square to preserve pitch.
  6. Optional strap: Where Fascia fastening is limited or extra security is desired, use the built-in keyholes to add a roof-deck strap per your standard detail with corrosion-resistant fasteners.
  7. Final check: Sight the run for straightness and consistent pitch. Confirm clip engagement and fastener tightness. Water-test outlets.
Maintenance
  1. Seasonal check: After major storms, inspect for loose fasteners or shifted sections; snug screws as needed.
  2. Corrosion control: Replace damaged or corroded fasteners with aluminum or stainless screws.
  3. Gutter system health: Keep gutters and outlets clear to reduce load on hangers.
  4. Adjacent details: Verify drip edge alignment and any straps remain tight and leak-free.

Compare Styles & Materials

Hidden Hanger with Rear Clip vs Alternatives

Rear Clip vs No-Clip
  • Rear Clip (this model): Fast snap-over engagement and added security at the back hem.
  • No-Clip: Reserved for tight drip edge or special retrofit conditions; available by customer request only.

Hidden Hanger with Rear Clip vs Spike and Ferrule
  • Rear-Clip Hidden Hanger: Cleaner appearance, strong front-bead engagement plus rear clip lock, resists loosening over time.
  • Spike and Ferrule: Visible fasteners; can loosen as wood expands and contracts; more maintenance long term.

Hangtite™ with Rear Clip vs generic Hidden Hangers
  • Hangtite™ with Rear Clip: Channel-formed self-bracing design, rounded front for smooth seating, snap-over rear clip, strap keyholes, proven holding power in manufacturer testing.
  • Generic: May lack reinforcement at stress points, fewer attachment options, inconsistent fit behind drip edge.

Best Choice: Choose the Hangtite™ Hidden Hanger with Rear Clip for most 5-in K-style installs. The snap-over rear clip and self-bracing channel design deliver a cleaner look and stronger long-term hold than spikes/ferrules or generic hangers, with optional strap keyholes for tough conditions.

Frequently Asked Questions

This is a general guide only and may not address your specific site conditions. If you are not experienced with this type of work, hire a qualified contractor.

Which gutter sizes does this hanger fit?

This model works with 5 inch K-Style systems.

What spacing should I use?

Many installers use about 24 in on center and tighten to about 16 in near corners, miters, and in snow/ice or high-wind zones. Follow local code and your company standards.

What screws should I use?

Exterior-grade corrosion-resistant screws long enough to penetrate framing at least 3/4 in. Do not overdrive.

Can I add a strap to the roof deck?

Yes. The built-in keyholes make strapping straightforward where fascia fastening is limited or extra reinforcement is desired.

Do you offer a no-clip version?

Yes, by customer request only. Our standard stocked model is the aluminum hanger with rear clip.
