3-Inch Pipe Clip

3-Inch Pipe Clip

Color: White, 30 Degree
Unit of measure: pcs
icon of a box with stamp
Expected ship / pick-up date:
06 Oct | Typically ready in 1-2 days
We're ready to help. Call us at (610) 779-6934 and we'll happy to answer your questions.

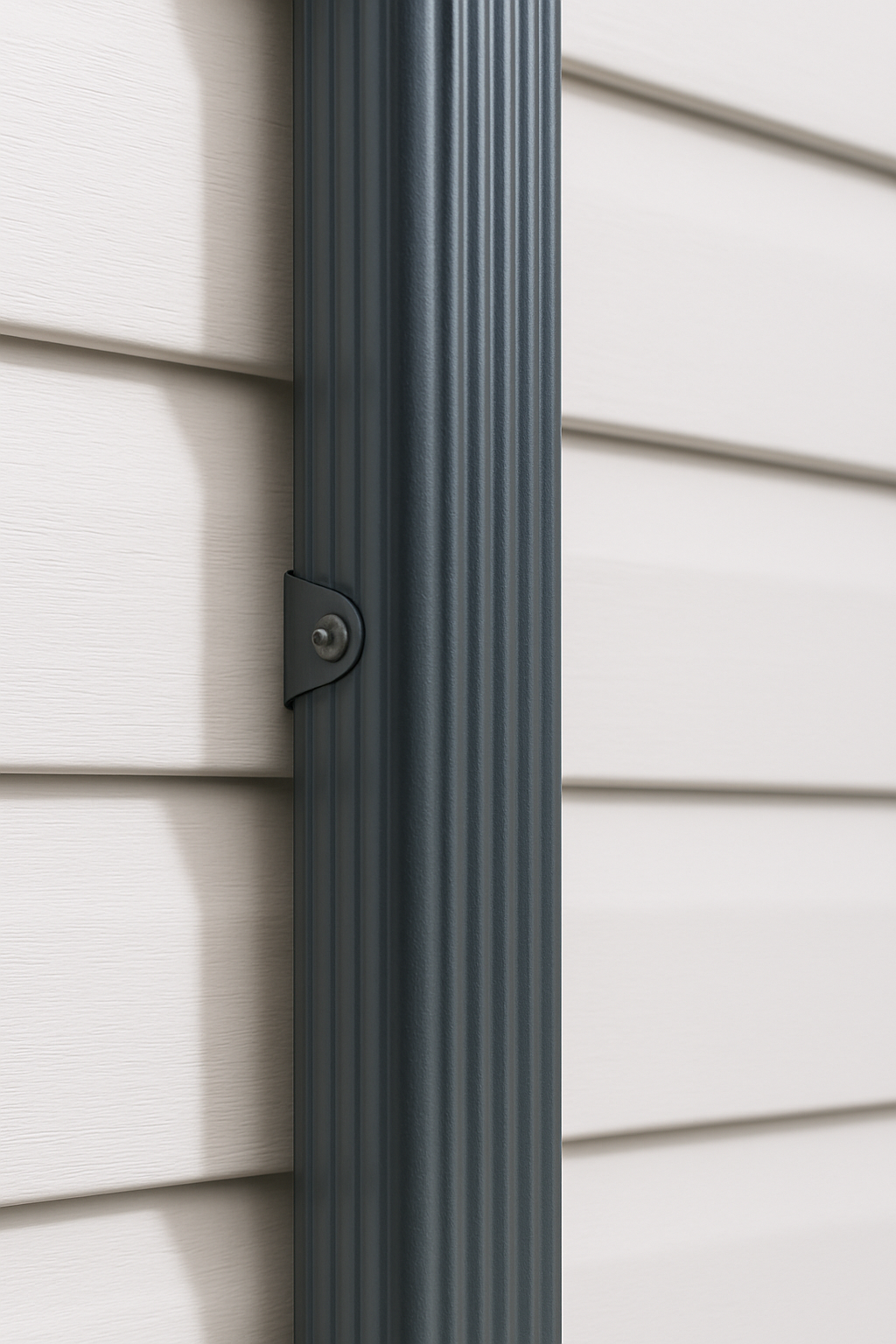

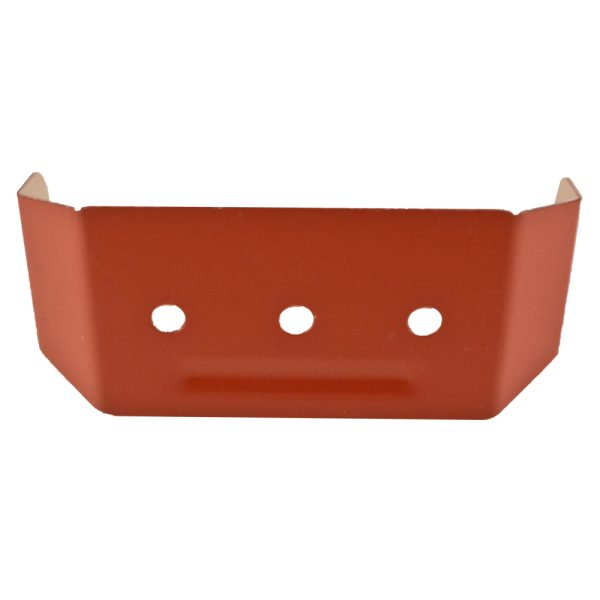

Secure your Downspouts with professional-grade support using our 3-Inch Pipe Clips. Engineered with heavy-duty U-bracket design and manufactured from robust .032" aluminum, these Pipe Clips provide superior holding power and streamlined installation for both round and rectangular Downspout applications. Available in 20+ color-matched finishes, these Pipe Clips deliver reliable long-term performance while maintaining clean, professional appearance that contractors and homeowners trust.

3-Inch Pipe Clip Key Features

  • Heavy-duty U-bracket design

    .032" aluminum construction provides superior rigidity and holding power compared to wrapped Conductor Straps for maximum reliability

  • Universal compatibility

    U-bracket shape naturally cradles Round, Half Round, and Rectangular Downspouts for versatile installation applications

  • Fast installation

    One-piece design eliminates wrapping and positioning steps, allowing quick slide-over-and-fasten installation for improved efficiency

  • Complete color coordination

    Available in 20+ baked-on enamel finishes to seamlessly match your Gutter and Downspout System

3-Inch Pipe Clip Material & Specifications

Type: U-Bracket Pipe Clip for 3-inch applications
Downspout Compatibility: 3-Inch Round, Half Round, and Rectangular Downspouts
Material: Aluminum, baked-on enamel finish
Gauge / Thickness: .032"
Colors: 20+ color options to match Gutter Systems
Application: Professional Downspout support and attachment
Installation: Single fastening point to building structure
Spacing: Typically installed every 6-8 feet along Downspout runs

Installation & Maintenance Tips

This installation information is a general guide only and may not address your specific site conditions. Always follow local building codes, safety practices, and professional methods. If you are not experienced with this type of work, hire a qualified contractor.

Installation
  1. Mark support locations: Plan Pipe Clip placement every 6-8 feet along Downspout run; ensure adequate clearance and proper alignment with building structure.
  2. Position Pipe Clip: Slide U-bracket over Downspout ensuring proper fit and alignment; verify Clip sits flush against building surface.
  3. Mark fastener holes: Hold Clip against mounting surface and mark Screw locations; ensure fastener placement avoids utilities and provides secure attachment.
  4. Drill pilot holes: Use appropriate drill bit for building material type; create clean holes sized for proper fastener engagement without splitting.
  5. Install fasteners: Secure with appropriate Screws for building material; tighten firmly but avoid over-driving that could distort the U-bracket.
  6. Verify alignment: Check that Downspout remains plumb and properly supported; adjust if necessary for optimal performance and appearance.

Maintenance
  1. Inspect Clip integrity: Check Pipe Clips seasonally for loosening, corrosion, or structural damage; address any issues promptly for continued support.
  2. Monitor fastener security: Verify Screws remain tight in building material; replace loose or corroded fasteners to maintain reliable attachment.
  3. Check Downspout alignment: Ensure Clips continue to hold Downspout in proper position; adjust if thermal movement has affected alignment.
  4. Clear obstructions: Remove any debris around Clip connections that could interfere with drainage or cause moisture retention issues.

Compare Styles & Materials

3" Pipe Clips vs Other Options

Pipe Clips vs Conductor Straps
  • Pipe Clips: One-piece U-bracket design, faster installation, superior holding power, works with all Downspout shapes, professional appearance.
  • Conductor Straps: Lower material cost, wraps around Downspout, more installation steps, primarily for rectangular Downspouts.
3-Inch vs 4-Inch Pipe Clips
  • 3-Inch Pipe Clips: Designed for standard round Downspouts and smaller rectangular applications, lighter weight, easier handling.
  • 4-Inch Pipe Clips: Sized for 3x4 rectangular Downspouts and larger round applications, heavier-duty for high-capacity systems.

Best Choice: Use 3-Inch Pipe Clips for professional installations requiring superior holding power, faster installation, or applications with round/half-round Downspouts. Choose Conductor Straps only when budget is the primary concern and rectangular Downspouts are used exclusively.

Frequently Asked Questions

This is a general guide only and may not address your specific site conditions. If you are not experienced with this type of work, hire a qualified contractor.

Why choose Pipe Clips over Conductor Straps?

Pipe Clips provide superior holding power with .032" gauge construction, faster one-piece installation, and universal compatibility with round, half-round, and rectangular Downspouts. They maintain alignment better and require less maintenance than wrapped Conductor Straps.

What size Downspouts work with 3-Inch Pipe Clips?

3-Inch Pipe Clips accommodate 3-inch Round Downspouts, standard half round profiles, and smaller Rectangular Downspouts. For 3x4 Rectangular Downspouts, use our 4-Inch Pipe Clips for proper fit and support.

How do Pipe Clips handle thermal expansion?

The rigid U-bracket design allows controlled movement while maintaining support. The .032" gauge aluminum flexes slightly with thermal expansion without losing holding power, unlike wrapped Straps that may loosen over time.

What fasteners work best for Pipe Clip installation?

Use appropriate fasteners for your building material: Wood Screws for wood siding, Masonry Screws for brick/block, and Toggle Bolts for hollow wall applications. Always choose corrosion-resistant fasteners to prevent staining and ensure longevity.

Can Pipe Clips be used on all building types?

Pipe Clips work on virtually all building types including wood frame, masonry, metal, and composite siding. The single-point attachment simplifies installation compared to wrapped Straps, making them ideal for both residential and commercial applications.
